FLAT SKETCH
GENERATOR

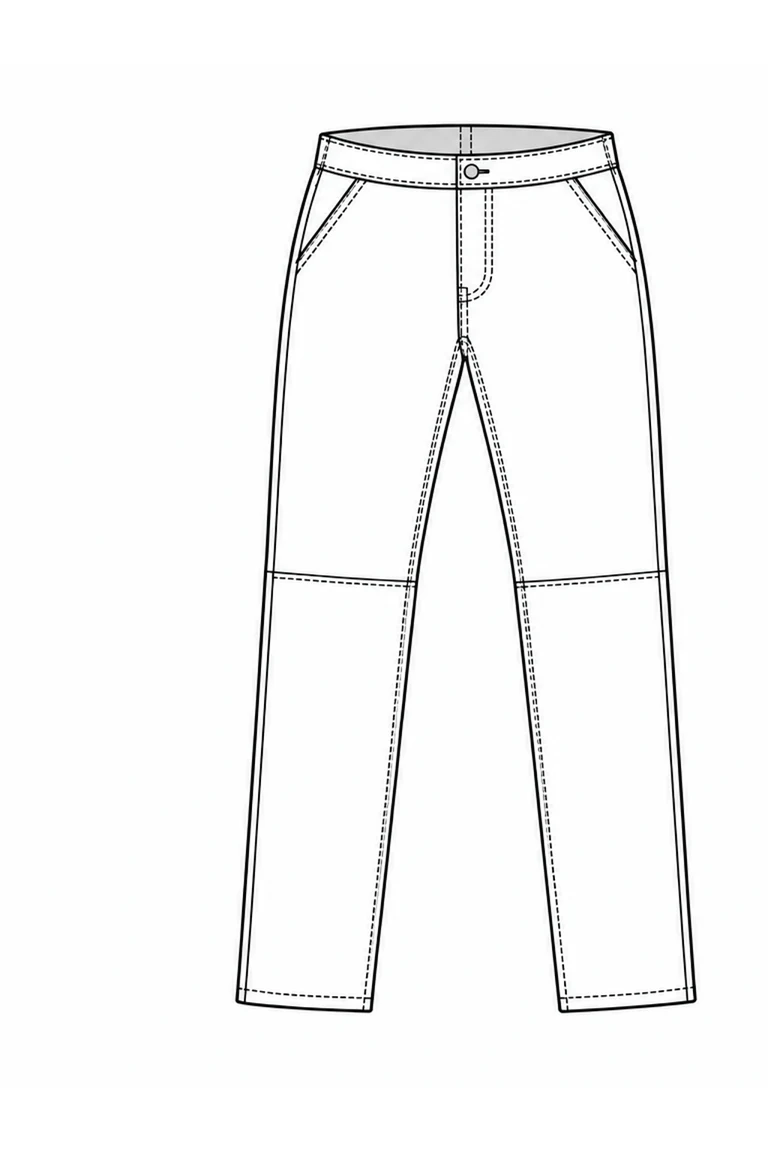

A flat sketch (also called a technical flat or fashion flat) is a 2D line drawing of a garment laid flat, showing all construction details like seams, stitching, and closures. Factories use flat sketches as the primary visual reference when producing your garments.

You can download your flat sketches as high-resolution PNG files for quick sharing, or as SVG vector files for scalable, editable output. Both formats are factory-ready and can be dropped straight into your tech pack or sent to your manufacturer.

No design experience is needed. Simply upload a photo of your garment — front and optionally back — and our AI generates a clean, factory-ready flat sketch automatically. The tool is built for DTC brand owners, merchandisers, and first-time designers alike.

Yes. The flat sketches follow industry-standard formatting that factories worldwide recognize. You can download and attach them to your tech pack, email them directly, or use the AI Tech Packs platform to generate a full tech pack with measurements, BOM, and construction details included.

Our AI produces flat sketches that capture the proportions, construction lines, and design details of your garment. For best results, upload a clear, well-lit photo on a plain background. You can regenerate or refine results if the first pass doesn’t match your expectations.

Your images are processed securely and used only to generate your flat sketch. We do not share your uploads with third parties. If you create an account, your saved flat sketches are stored privately in your dashboard for easy access.
